CBME80/120 Cloud Ceilometer Advanced Cloud Height Detection

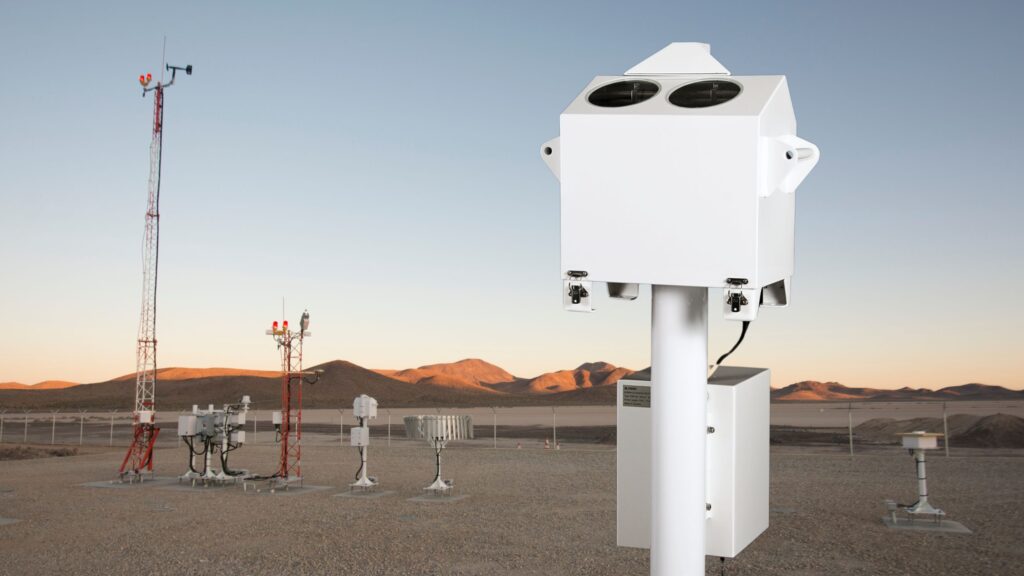

A compact and lightweight standalone instrument designed for fixed and mobile installations where accurate and reliable cloud height information is required.

Request a Quote

CBME80/120 Info Brochure

Advanced LIDAR Technology

The CBME80/120 utilizes the LIDAR principle with a low-power diode laser, limited to eye-safe levels. Real-time digitizing techniques combined with powerful microprocessor and FPGA technology ensure precise signal processing and reliable cloud height measurements, meeting all ICAO Annex 3, 9837, FAA, CAA, and WMO requirements and reccomendations.

Multiple output options and built-in FSK modem support both local and remote operations, making it ideal for various installation scenarios from airports to meteorological networks.

Key Features & Benefits

Reliable Operation

Exceptional MTBF of 100,000 hours for mission-critical applications

Easy Maintenance

Modular design with easily replaceable subunits requiring no realignment

Extended Laser Life

Calculated 10-year laser diode lifespan reduces maintenance requirements

Superior Range

25,000 ft measurement capability for comprehensive cloud detection

Efficient Operation

Low power consumption ideal for remote installations

Compact Design

Lightweight construction at just 15 kg for versatile deployment options

Technical Specifications

Performance

Range 0 — 7,500 m / 0 — 25,000 ft

Resolution 5 m

Accuracy Greater of ±5 m or ±1% of height

Measuring Interval 15, 30, 60, 120 seconds

Interface

Outputs RS-232, RS-485, FSK/V23

Cloud Data Up to three cloud bases

Additional Data Vertical visibility, Cloud amount

Profile Data Backscatter profile

Physical

Operating Temperature -40 — +60 °C

Power Supply 115V/230V, 45-65 Hz/span>

Power Consumption Electronics 30VA, heater 200VA

Weight 15 kg (without stand)

Optional Features

Window blower
Solar shutter
Mobile version with local display
Housing classification: IP66
Tilt functionality
Contamination detection
Stand for fixed installation
12V DC power supply

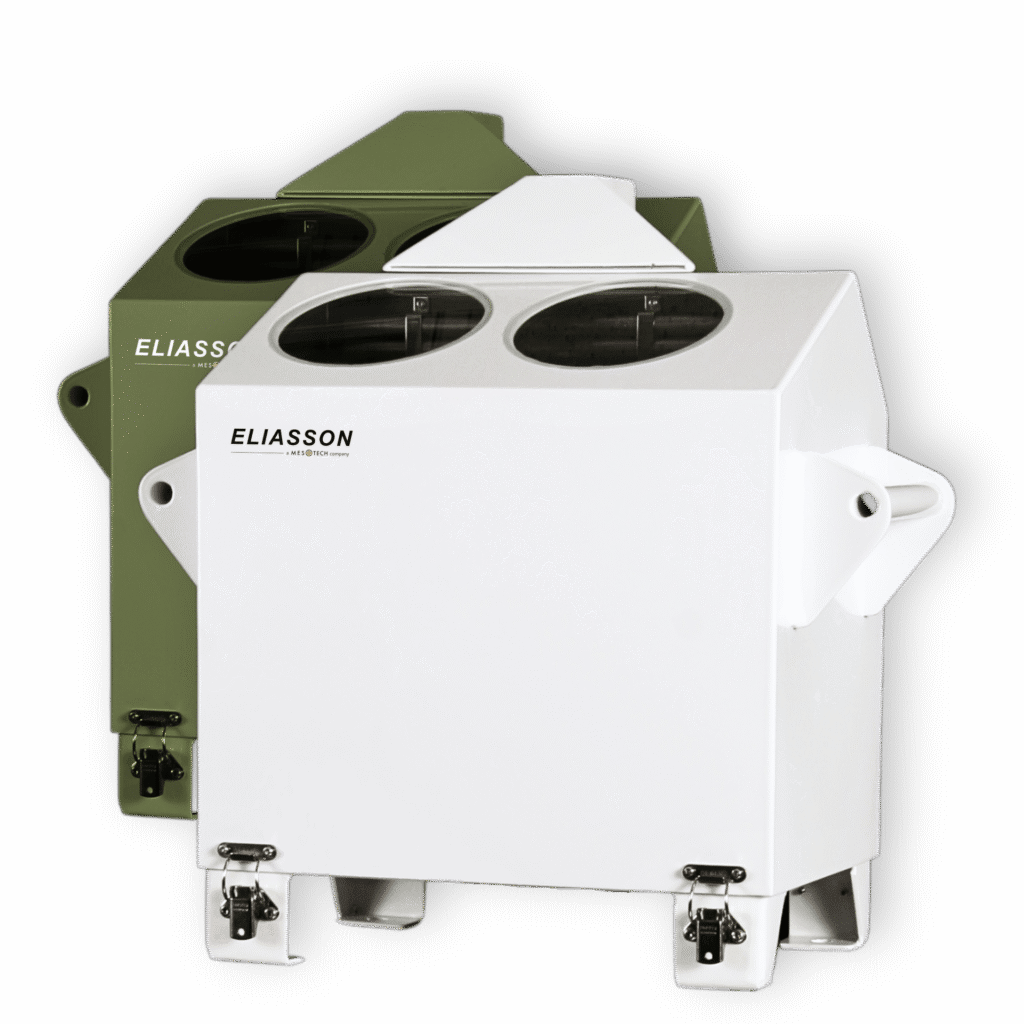

Military Green color option

Available Accessories

Blower unit
Cloud Presentation Suite (Windows)
Digital display BE360
Demodulator V.23 - RS-232C

Safety & Certification

Laser Safety

Eye safe Class 1M in accordance with IEC 60825-1, ensuring safe operation in all environments.

Environmental Protection

Optional IP66 housing classification available for protection against harsh environmental conditions.

Contact Mesotech International today to discover how the Cloud Presence Sensor can enhance your operations with reliable cloud detection capabilities.
