Cloud Presentation Suite Simple, Reliable Cloud Detection

The CPS delivers cost-effective cloud detection for applications requiring basic cloud presence information without the need for detailed cloud height measurements.

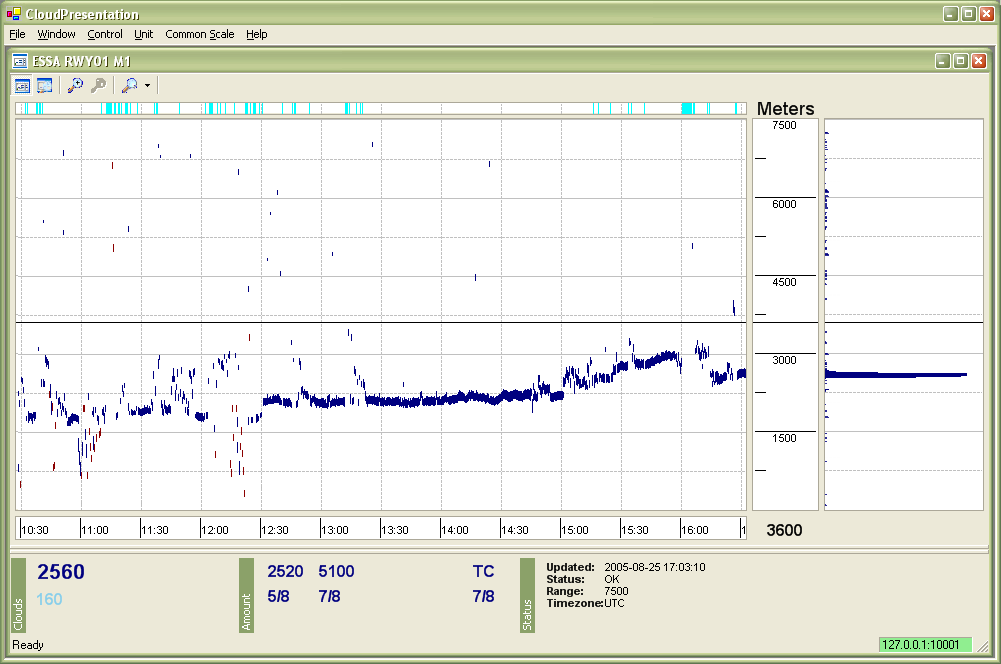

(Main view)

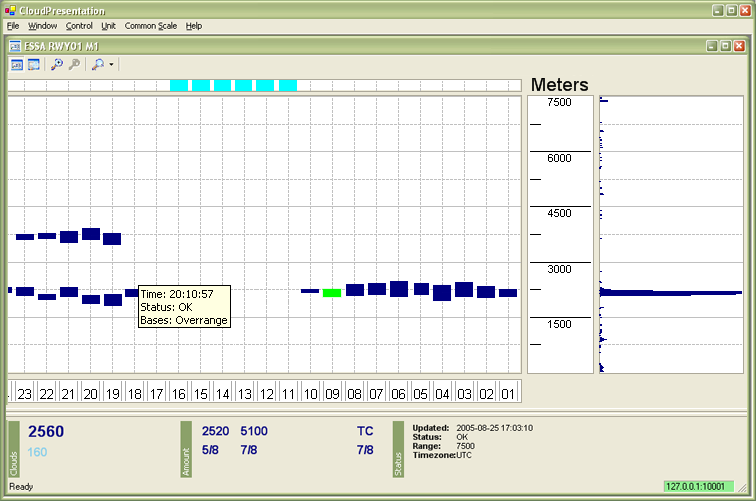

(Detail view)

Simplified Cloud Detection

The Cloud Presence Sensor (CPS) is designed for applications requiring reliable cloud detection without the complexity of full cloud height measurement systems. Its innovative optical design and smart processing algorithms ensure accurate cloud detection while minimizing false alarms.

Built for continuous operation in harsh environments, the CPS combines robust construction with sophisticated cloud detection technology to deliver dependable performance with minimal maintenance requirements.

Performance Analysis

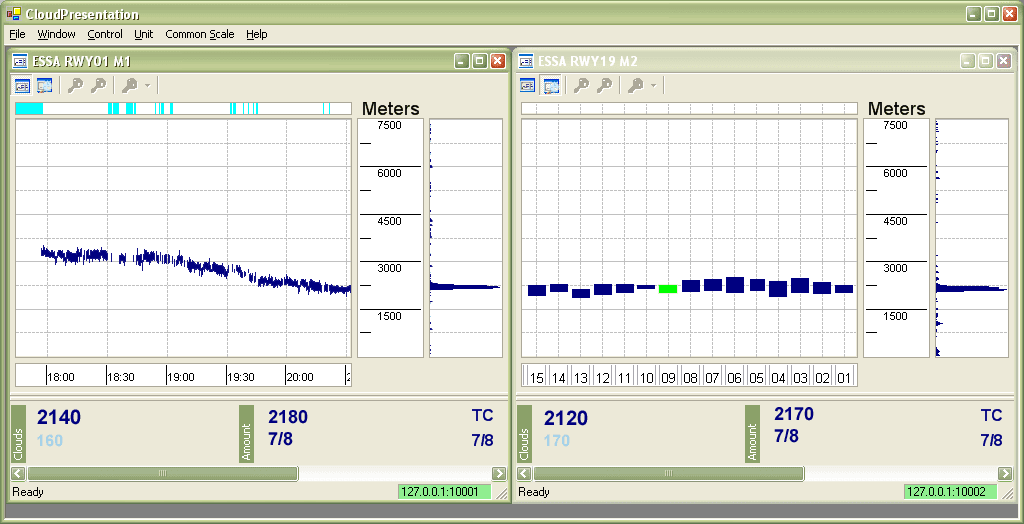

(Multiple connections)

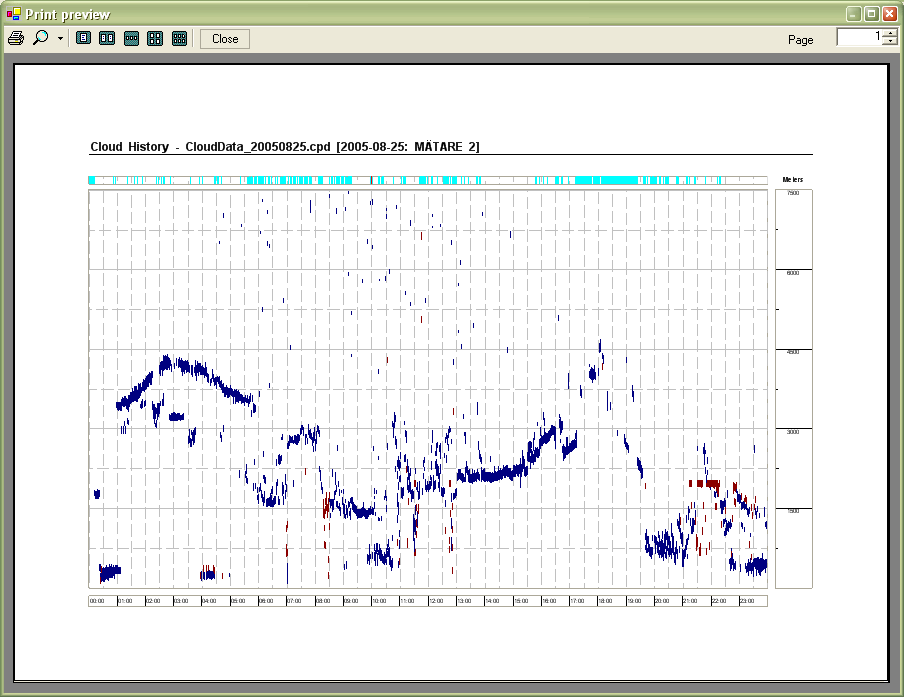

(Print preview)

Key Features & Benefits

Cloud Detection

Advanced optical system for precise cloud presence detection up to 25,000 feet (7.5 km)

Fast Response

Real-time cloud detection with rapid update rates for immediate status changes

Long Lifespan

Robust design with minimal moving parts ensures extended operational life

All-Weather Operation

Reliable performance in extreme conditions from -40°C to +55°C

Environmental Protection

IP66-rated enclosure for complete protection against dust and water

Smart Processing

Built-in intelligence for accurate cloud detection and false alarm prevention

Technical Specifications

Performance

Measurement Range Up to 25,000 ft (7.5 km)
Accuracy ±100 ft (30 m)
Resolution 50 ft (15 m)
Update Rate 30 seconds

Environmental

Operating Temperature -40°C to +55°C
Storage Temperature -50°C to +70°C
Humidity 0 to 100% RH
Protection Rating IP66

Physical

Dimensions 0.8 x 0.4 x 0.3 m
Weight 15 kg
Power Supply 110/230 VAC, 50/60 Hz
Power Consumption < 100W

Applications

Aviation

  • Regional airports
  • Heliports
  • Military airfields
  • Emergency landing sites

Industrial

  • Wind farms
  • Solar power plants
  • Construction sites
  • Port facilities

Research

  • Weather stations
  • Climate monitoring
  • Environmental studies
  • Agricultural research

Contact Mesotech International today to discover how the Cloud Presence Sensor can enhance your operations with reliable cloud detection capabilities.
